A flame-retardant marking alone does not prove that a cable suits a moving crane, hoist or lift. You need to match the exact Polycab designation with the electrical load, festoon hardware, travel motion, environment and installation limits before accepting a quotation.
Key takeaways
- Flame retardance does not guarantee fire resistance, low smoke or halogen-free construction.
- Compare conductor size, voltage rating, bending radius and duty-cycle data in the datasheet.
- Size the cable for movement, controls and mechanical loads—not motor current alone.
- Confirm trolley dimensions, loop length, bend radius and test documents before ordering.
What the flame-retardant designation actually proves
A flame-retardant designation proves that the cable limits flame propagation after an ignition source is applied, according to the test standard or classification printed on its datasheet. It does not prove fire resistance, which means maintaining circuit operation during a specified fire exposure, and it does not prove low smoke or halogen-free construction.
A search for Polycab flame retardant cable for festoon in Chennai is not a sufficient specification. Before accepting a quotation, match the manufacturer’s current datasheet to:
- Exact catalogue designation and part number
- Conductor cross-sectional area and conductor class
- Number of cores, including the protective-earth core arrangement
- Rated voltage and permissible operating temperature
- Insulation and sheath materials
- Flat or round construction and, for flat cable, finished dimensions
- Applicable standard, flame-retardance test and classification
- Manufacturer-stated flexing application, travel limit or cycle information
The cable must also suit the moving installation. “Flexible” on the jacket does not establish continuous festoon suitability. Use the specific operating minimum bending radius, not a radius listed only for fixed installation or occasional bending.
Check trolley wheel profile, saddle dimensions, suspension spacing and loop depth; sharp creasing, rubbing or torsion can destroy a correctly rated cable.
An FR cable is the wrong choice if the design requires circuit survival during fire or an LSZH specification. Confirm those properties separately.
Read the datasheet before comparing cable sizes
A quoted size is not enough. For a polycab festoon cable in chennai, obtain the current manufacturer datasheet and match the exact catalogue designation, part number, core count, conductor cross-sectional area, conductor class, standard marking and packing length. Visually similar stock can have different insulation, voltage or movement ratings.
| Specification to compare | What to verify | Why it affects selection |
|---|---|---|
| Electrical | Rated voltage, permissible conductor temperature, core arrangement and earthing core | An underspecified voltage or missing protective-earth core creates an installation and safety problem |
| Construction | Flat or round form, insulation and sheath materials, number of cores and conductor class | The wrong profile may not sit correctly in the trolley saddle or carrier |
| Dimensions | Overall width and height or outside diameter, suspension spacing and loop depth | Oversized loops rub the rail; undersized loops pull the terminals |
| Mechanical | Minimum bending radius for continuous festoon movement, permissible travel speed, flexing duty and torsion resistance | A fixed-installation radius does not prove suitability for repeated travel |
| Compliance | Applicable product standard and the exact flame-retardance classification | “FR” alone does not establish fire resistance or LSZH performance |
Compare the datasheet values with the machine’s travel geometry, trolley wheel profile, saddle dimensions and duty cycle.
Ask the dealer to confirm these against the quoted part number, not a general description such as “Polycab flame retardant cable for festoon in Chennai.” A cable that passes electrical checks can still crease, twist or wear through its sheath.
Select the cable for the machine, not just the motor current
A 32 A motor does not automatically call for a 32 A festoon cable. Size the power cores for full-load current, starting conditions, voltage drop, protective-device rating and permissible conductor temperature; then check the cable’s mechanical rating. An undersized cable overheats, while a correctly sized cable with the wrong construction can fail during travel.
Confirm these machine-side inputs before ordering:
- Motor supply voltage, phase arrangement, full-load current and starting method.
- Separate protective conductor, control cores, brake conductors, shielded signal pairs or data cable required by the equipment circuit.
- Travel length, trolley spacing, loop depth, minimum bending radius, rail or C-track layout, acceleration and stopping forces.
- Cycles per hour, operating hours, travel speed and whether the cable hangs continuously or moves intermittently.
- Oil, abrasion, outdoor weather and ambient-temperature exposure.
Duty cycle decides whether “flexible” is enough. Ask for the manufacturer’s stated festoon or continuous-flex application, conductor construction, permissible travel or cycle information and installation limits. A round flexible cable with similar copper area can twist or track badly where parallel trolleys require a flat cable.
For a Polycab festoon cable in Chennai, compare the current manufacturer datasheet with the machine schedule: quoted part number, core count, conductor size, voltage designation, standard marking, dimensions and packing length. Polycab festoon cable in Chennai stock can look identical while carrying different insulation or mechanical ratings.
Use the cable that matches the complete travel system, not the motor label alone.
Check trolley fit and install the loops without mechanical damage
Confirm fit by measuring the existing trolley, rail, C-track or festoon carrier before you order. A cable that reaches the terminals can still fail if its flat or round geometry does not suit the saddle, wheel profile, clamp width or guide opening.
Record these dimensions and operating conditions against the current manufacturer datasheet for the quoted part number:
- Trolley saddle width, depth and wheel profile, plus the carrier’s maximum cable diameter or flat-cable thickness.
- Trolley spacing, suspension distance, travel length, loop depth and the clearance available at both travel ends.
- Minimum bending radius, permissible flexing direction, travel speed, acceleration and stopping forces.
- Cable construction, conductor size, core count, sheath material and the required separation between power, control and earthing cores.
- Exposure to oil, abrasion, outdoor weather and the machine’s ambient temperature.
Use the manufacturer’s minimum bending radius to set the loop; do not force a tighter fold to gain clearance. Flat festoon cable must sit squarely in the saddle, while a round flexible cable can twist or track poorly even when its copper area matches.
During installation, keep clamps aligned, remove sharp edges, prevent torsion and leave no section rubbing the rail or trolley. Run the carrier through its full stroke by hand before energising it, then inspect for creasing, pinching and uneven loop recovery.
These measurements belong in the purchase specification for a Polycab flame-retardant cable for festoon in Chennai, not only on the installation drawing.
What to demand from cable dealers before placing a Chennai order
Before paying, verify the seller’s channel, the exact cable identity and the replacement conditions in writing. A Polycab name on a quotation does not prove authorised sourcing.
1. Check the seller against Polycab’s current channel information and ask for a tax invoice naming the legal seller. Record the product label, batch or manufacturing number, drum or coil number and supplied length. A claimed Polycab distributor in Chennai should provide these without hesitation.
2. Demand a quotation that states the exact catalogue designation, conductor size and class, core count, rated voltage, insulation and sheath materials, flat or round construction, applicable standard, packing form and quantity.
It must say whether the cable is factory-packed or cut length, identify the length tolerance, list test documents supplied with the consignment and state the return policy. Cut cable is harder to return than a sealed drum.
3. Request the current manufacturer datasheet and compare its part number, marking, packing length and ratings with your installation. Visually similar cables can have different insulation, voltage or mechanical ratings. A cable dealers Polycab quote that omits the part number is incomplete.
4. For a replacement, send the original cable details plus trolley dimensions, loop geometry, conductor loading, control-core needs, earthing method and bending limits. If Prabhat Cables Pvt. Ltd is quoting, ask it to confirm these points against the proposed part, not merely match the printed cross-section.
5. Confirm resistance to UV, water, oil, dust and heat from the datasheet for outdoor Chennai service. Flame-retardant marking alone does not establish environmental compatibility.
Related product

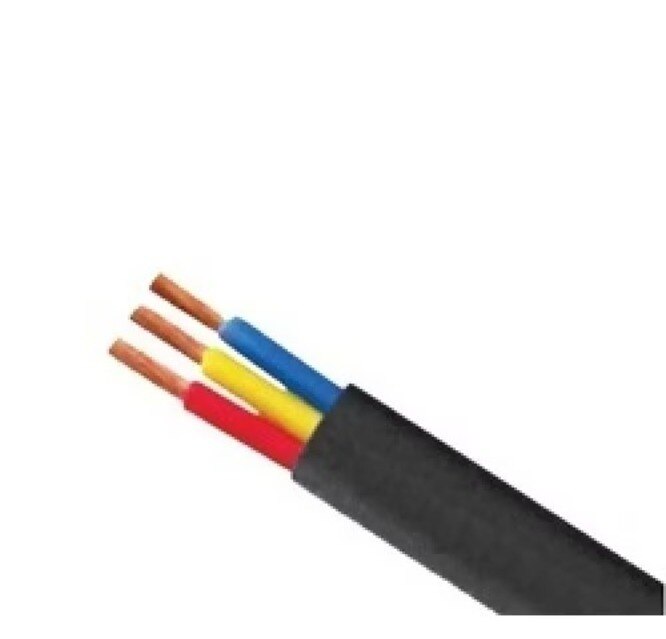

 | Polycab Festoon Cables Polycab Festoon Cables are specialized flat, flexible cables designed for use in festoon systems, particularly on cranes, hoists, and lifts. View product → |
Frequently asked questions
What does a flame-retardant designation prove on a festoon cable?
It proves the cable limits flame propagation after ignition under the test standard or classification shown on its datasheet. It does not prove fire resistance, low smoke or halogen-free construction.
How should you compare Polycab festoon cable sizes?
Read the datasheet for conductor cross-section, voltage rating, current capacity, insulation, sheath material, operating temperature, bending radius and permitted movement duty. Do not compare size by conductor area alone.
Why is motor current insufficient for selecting a festoon cable?
A festoon system also carries control, signal, brake, earth and auxiliary circuits. Repeated flexing, trolley travel, loop weight, bend radius and installation forces must match the cable design.
What should you verify with Chennai cable dealers before ordering?
Request the exact part number, current datasheet, test or classification details, drum length, batch identification, delivery condition and compatibility with your trolley dimensions and installation layout.
